Camera Features:

Item

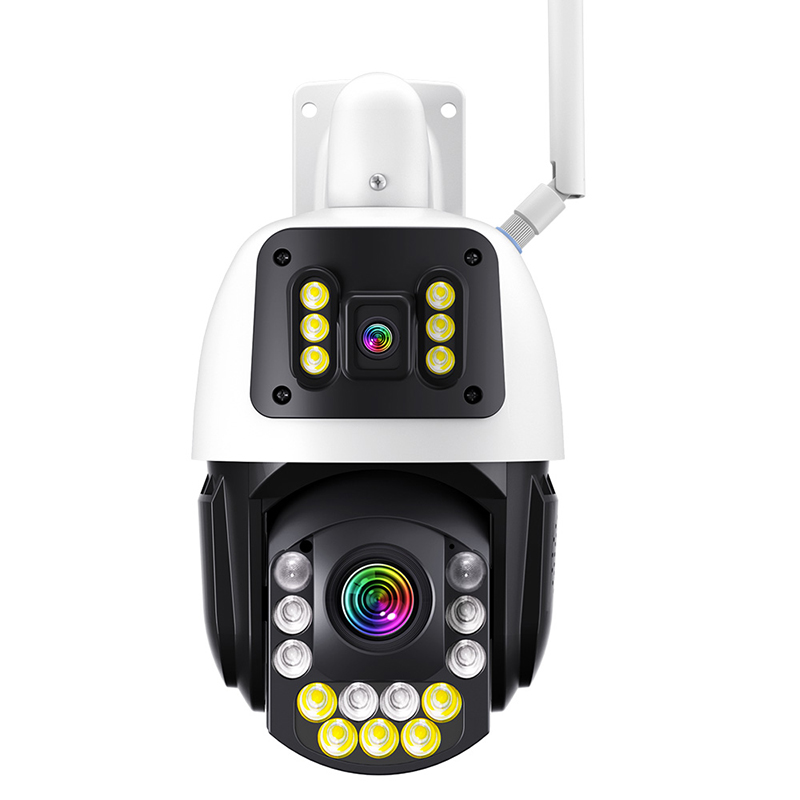

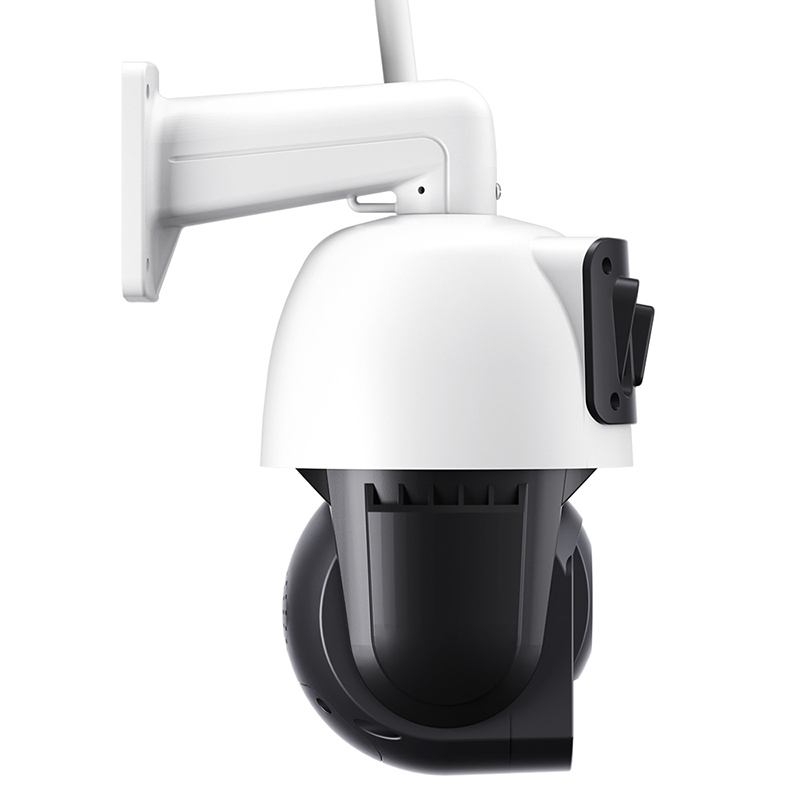

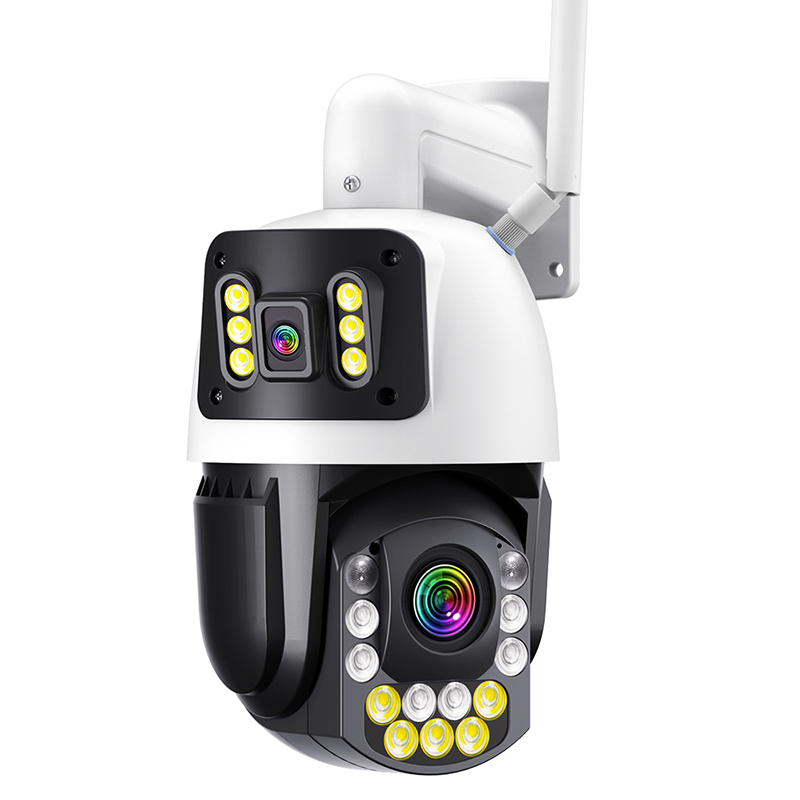

WIFI 【dual cameras-bullet & dome cameras linkage】

Master Control

Dual-core 32-bit DSP (XM650V200), pure hard compression, watchdog

Sensor

Three 4 million 1/2.8 "SC300AI high-performance CMOS sensors

Minimum Illumination

Color: 0.01Lux @(F1.2,AGC ON); 0 Lux with IR；
Black and white: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR

Shutter

1/50(1/60)S-1/10000S

Lens

F1.4*3.6MM+Ultra-high-definition 18X optical zoom lens (4.7-94MM; can be changed to digital display 50X)

Noise Reduction

Support 2D/3D noise reduction

Video Format

H.265AI

Resolution

Main resolution: 2688×1520; Sub-resolution: 800 * 896

Frame Rate

12 fps

Intelligent Analysis

Support human shape detection

Rreset Point Cruise

Support 16 preset points cruise, support two-point scanning, watching guard, power-off memory.

 PTZ Rotation

Horizontal 0-355°, vertical 0-90°, rotation speed 0-20°/s.

Light Source

5*K1 high-power white lights + 6*K1 high-power infrared lights + 2*K1 laser lights on the down dome camera; 5*4 mixed light angle design on the upper bullet camera

Light Mode

Starlight full color/infrared night vision/dual lights warning

Two-way Voice

Support

Cloud Storage

Support

Protocol

Support NETIP and ONVIF protocol

Network Interface

10M/100M adaptive Ethernet port

Storage Interface

Local TF card (up to 256G)

Reset Key

Support one-click reset

Wireless Standard

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Power Consumption

20W

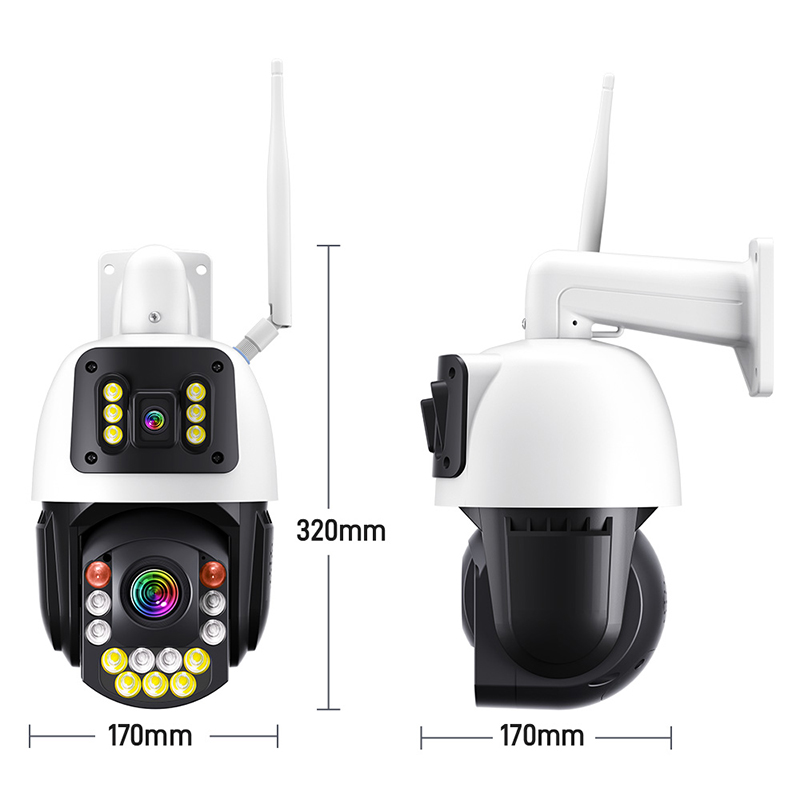

Color Box Size/Weight

188X188X357MM; Single weight 2.1kg

Outer Box Size/Weight

6 sets of each box. Box size: 585× 396× 372mm; Weight 13kg.

Working Temperature

-20 ° C -60 ° C, humidity less than 90% [no condensation]

Power Supply

DC 12V  2A
